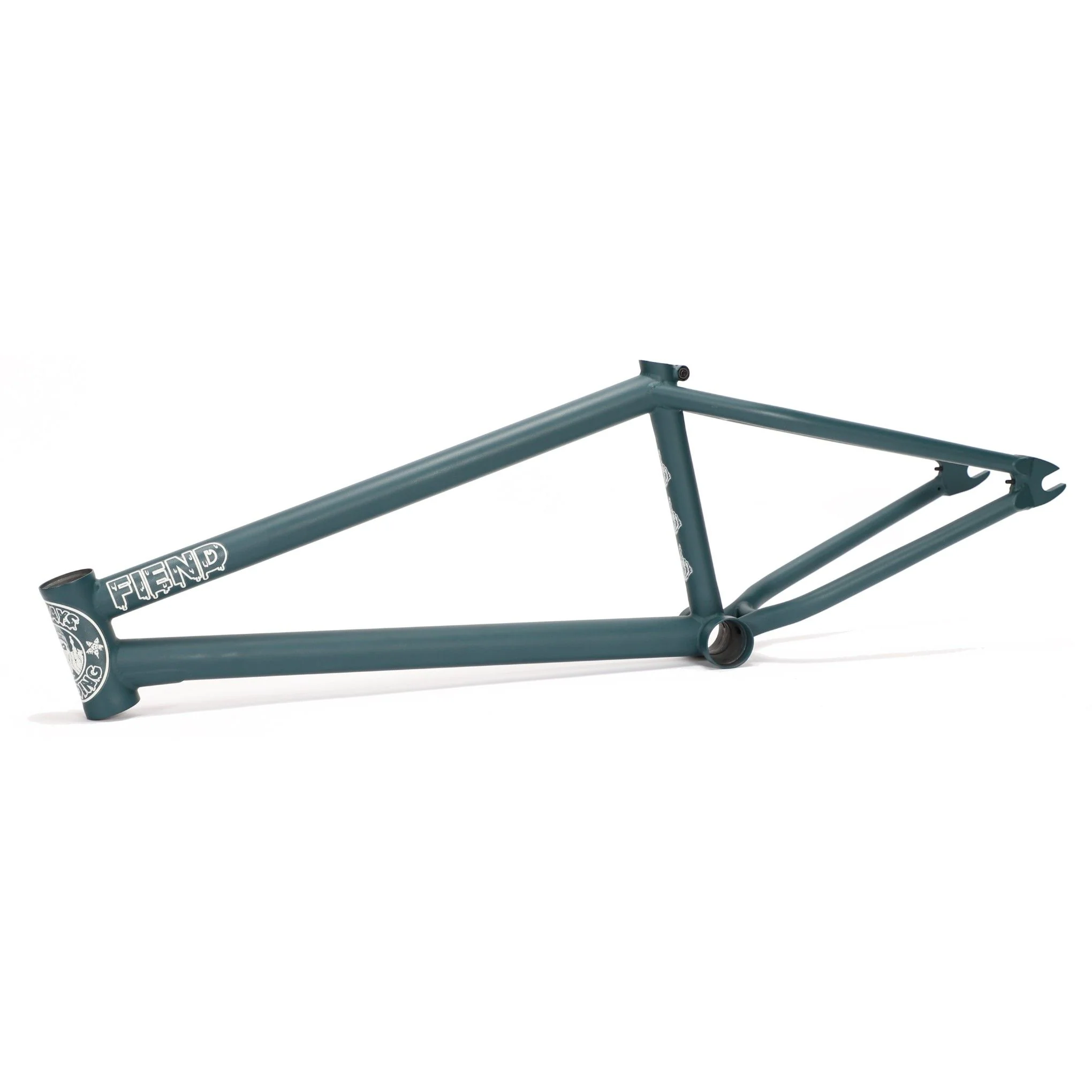

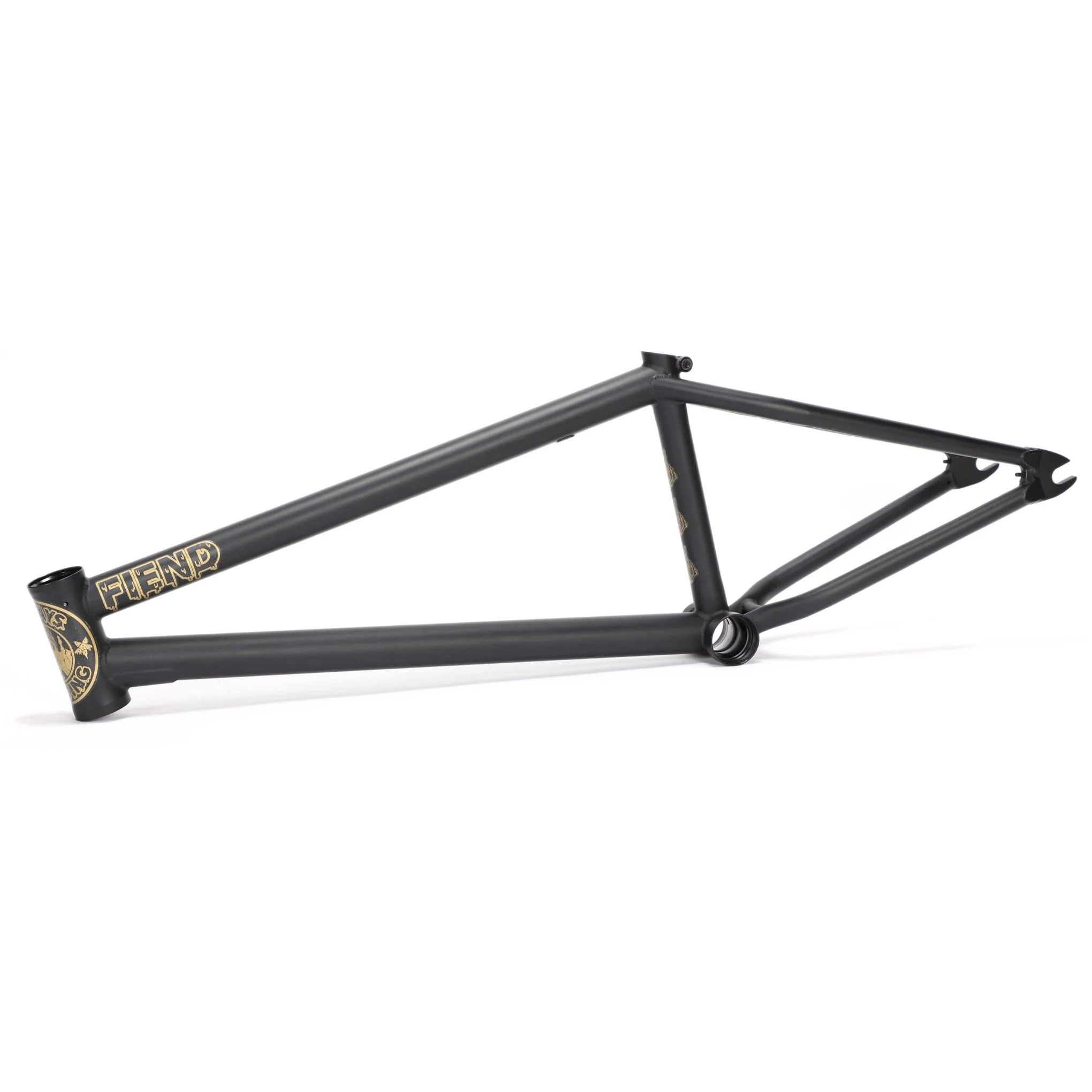

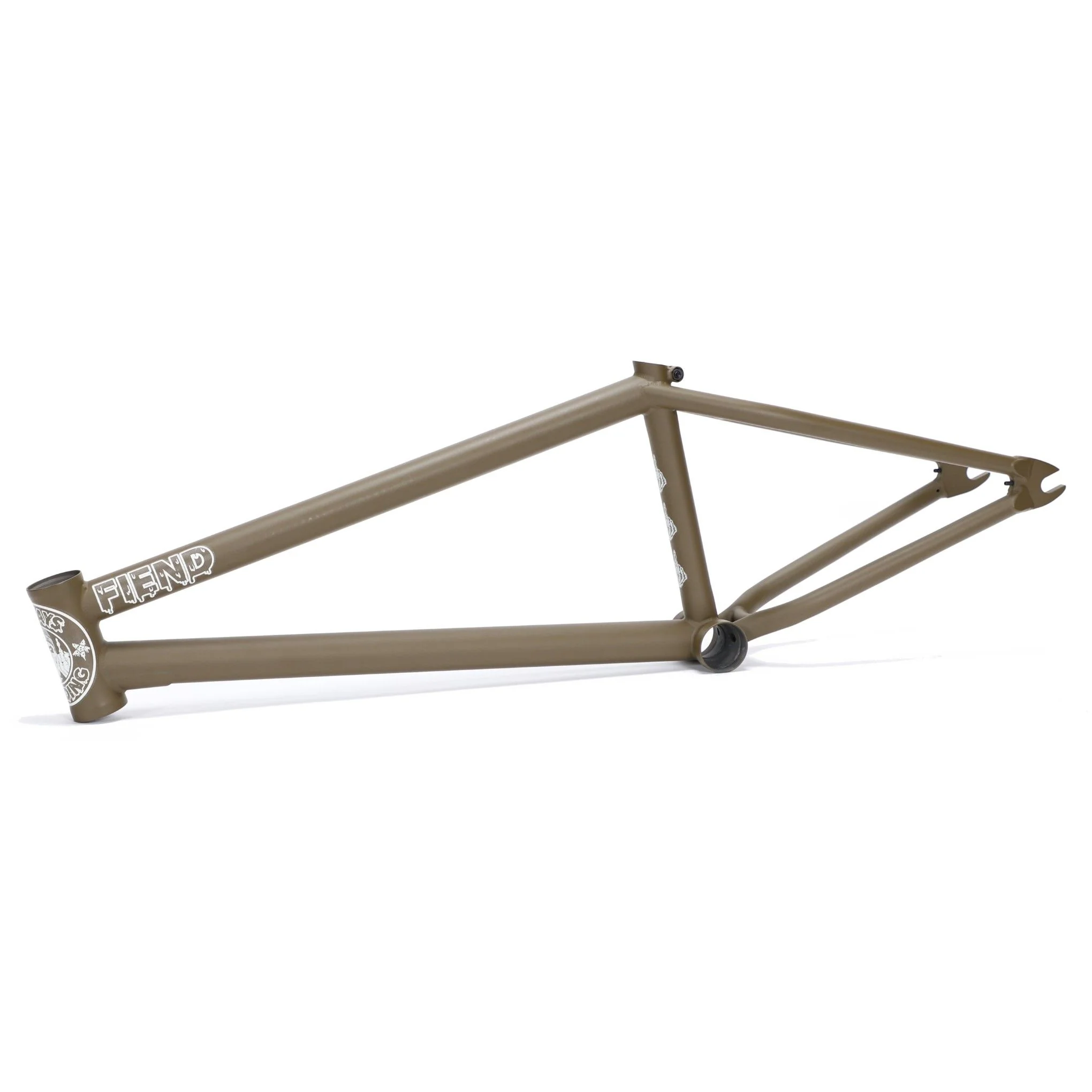

Fiend Reynolds v3 BMX Frame
Designed by Garrett and constructed with 100% 4130 chromoly throughout. New features on the v3 included elevated chain statys and updated 8mm thick dropouts with integrated tensioners and a new shape for the hang free grinds. The chain stay length has also been shortened to 12.75". Standard features include a heat treated Mid bottom bracket shell and Integrated head tube, internally gusseted double-butted down tube, externally butted seat tube with integrated post clamp.Ā
Specs:
Top Tube:Ā 20.75" / 21"
Head Tube Angle:Ā 75.5Ā°
Seat Tube Angle:Ā 71Ā°
Chain Stay:Ā 12.75"
Seat Tube Height:Ā 9"
Bottom Bracket Height:Ā 11.625"
Weight:Ā 5lb @ 20.75" TT
Original: $449.95
-70%$449.95
$134.98More Images
Fiend Reynolds v3 BMX Frame
Designed by Garrett and constructed with 100% 4130 chromoly throughout. New features on the v3 included elevated chain statys and updated 8mm thick dropouts with integrated tensioners and a new shape for the hang free grinds. The chain stay length has also been shortened to 12.75". Standard features include a heat treated Mid bottom bracket shell and Integrated head tube, internally gusseted double-butted down tube, externally butted seat tube with integrated post clamp.Ā
Specs:
Top Tube:Ā 20.75" / 21"
Head Tube Angle:Ā 75.5Ā°
Seat Tube Angle:Ā 71Ā°
Chain Stay:Ā 12.75"
Seat Tube Height:Ā 9"
Bottom Bracket Height:Ā 11.625"
Weight:Ā 5lb @ 20.75" TT
